Quick Answer
- To ground an amplifier in a car, run a short ground wire of the same gauge as the power wire from the amplifier to bare metal that is welded to the car’s body or chassis.
- Keep it short. Crutchfield says 18 inches at most, Kicker 24 inches, Rockford Fosgate less than 30 inches and JL Audio no more than 36 inches.
- Scrape the paint away so the connection is bare metal to bare metal, then bolt a ring terminal down with a star washer (Crutchfield, 2026).
- Do not use seat belt bolts. Rockford Fosgate’s manual says they should never be used for connecting to ground (Rockford Fosgate, 2019).
- Test it with a multimeter: half an ohm or less to the battery’s negative terminal is an excellent connection (Sonic Electronix, 2026).
To ground an amplifier in a car, pick a spot on the body or chassis close to the amplifier, sand it to bare metal, and bolt down a ring terminal on a ground wire that is as thick as the power wire and as short as you can make it. Then seal the joint against rust and check it with a multimeter. Crutchfield calls improper or loose grounding the number one cause of amplifier problems (Crutchfield, 2026), so this connection is worth doing carefully.
Why the Amplifier Ground Matters
The ground wire carries as much current as the power wire. Power flows from the battery, through the amplifier and back to the battery, so the ground completes the circuit (Crutchfield, 2026). BestCarAudio makes the same point: current needs one path into the amplifier and a second path out (BestCarAudio, 2025).
A weak ground acts like a thin wire. BestCarAudio worked through an example with an amplifier making 1,406 watts and drawing 137.1 amps. Through 16 feet of 4 AWG copper it lost 0.588 volts. With a ground path only as good as 12 AWG wire, it lost 3.74 volts, leaving the amplifier with about 10.8 volts (BestCarAudio, 2021).
Less voltage means less power. JL Audio’s manual adds that grounding problems are the leading cause of misdiagnosed amplifier failures (JL Audio, 2019). For the background on why voltage matters so much, see our explainer on how a car amplifier works.
What You Need to Ground a Car Amplifier
You need ground wire, a ring terminal that fits it, and tools to prepare the metal. Most of this comes in an amplifier wiring kit.
- Ground wire in the same gauge as the power wire
- A crimp ring terminal sized for the wire and the bolt
- A bolt with a star washer or lock washer
- Sandpaper, a wire brush or a scraper
- A wrench or socket set and a crimping tool
- A digital multimeter
- Silicone sealant to protect the bare metal
Step 1: Use the Right Wire Gauge and Keep It Short
Match the ground wire to the power wire. BestCarAudio says the ground wire should at least match the power wire in size, and that larger is fine (BestCarAudio, 2025). MTX gives the same instruction (MTX Audio, 2026).
Length matters as much as thickness, and manufacturers set different limits:
| Source | Maximum ground wire length |
|---|---|
| Crutchfield (2026) | 18 inches |
| Kicker (2019) | 24 inches |
| Rockford Fosgate (2019) | Less than 30 inches |
| JL Audio (2019) | 36 inches |
All four agree on the principle: as short as possible. Crutchfield adds that a longer ground wire can cause noise (Crutchfield, 2026).

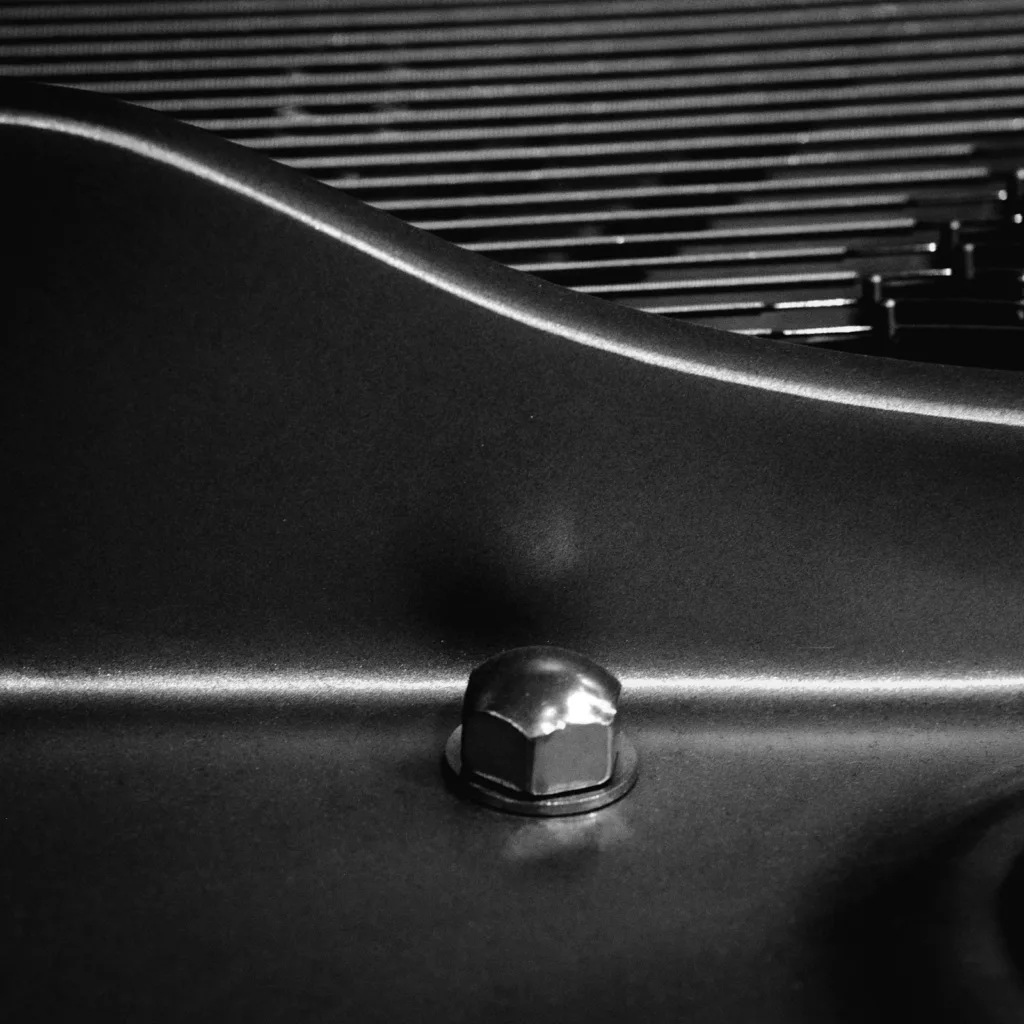

Step 2: Choose the Ground Point
The best ground point is thick metal that is welded to the main body or chassis of the vehicle, close to the amplifier (Rockford Fosgate, 2019). Crutchfield’s advice is to find a bolt to the vehicle’s metal frame as near to the amplifier as possible (Crutchfield, 2026).
Sonic Electronix lists good candidates: the main chassis or subframe, a factory grounding point, or a strut tower for a trunk-mounted amplifier (Sonic Electronix, 2026). Factory grounding points are a safe choice because the manufacturer already prepared them.
| Ground point | Verdict |
|---|---|
| Factory ground point | Good |
| Body or chassis metal welded to the structure | Good |
| Strut tower, for trunk amplifiers | Good |
| Seat bolt | Avoid |
| Seat belt bolt | Never |
| Thin panels, painted brackets, self-tapping screw in sheet metal | Avoid |
Seat bolts are the common shortcut, and the sources reject them. Rockford Fosgate’s manual states that seat belt bolts should never be used for connecting to ground (Rockford Fosgate, 2019), and its troubleshooting guide says to avoid seat bolts as well (Rockford Fosgate, 2022). Sonic Electronix puts it bluntly: a seat bolt is not the frame (Sonic Electronix, 2026).
If you drill a new hole, check behind the panel first. Sonic Electronix warns to look for wiring, brake lines and the fuel tank (Sonic Electronix, 2026).
Alpine suggests a quick check before you commit: confirm the spot is a true ground by testing continuity between it and the battery’s negative terminal (Alpine, 2026).
Step 3: Prepare the Bare Metal
Paint, primer and seam sealer do not conduct electricity, so they have to come off. Crutchfield’s instruction is to scrape away any paint and clean the bolt location so the ground wire makes bare metal to bare metal contact (Crutchfield, 2026).
Sand an area a little larger than the ring terminal until the steel is bright. Rockford Fosgate adds that you should clean off dirt and grease as well (Rockford Fosgate, 2019). Sand the underside of the bolt head too if it is painted.
Step 4: Bolt the Ground Wire Down
Crimp a ring terminal onto the wire and bolt it tight. Crutchfield recommends a lock washer or star washer to keep the connection tight (Crutchfield, 2026), and Rockford Fosgate specifies a non-anodized screw with a star washer (Rockford Fosgate, 2019). The teeth of a star washer bite into the metal and hold against vibration.
Sources differ on the fastener. JL Audio allows a sheet metal screw or bolt with a star washer (JL Audio, 2019). BestCarAudio says self-tapping screws are not adequate for a chassis ground and recommends a ring terminal with a bolt and a locking nut (BestCarAudio, 2025). A bolt is the stronger choice, particularly for amplifiers that draw high current.
Tug the wire once it is tight. The terminal should not rotate or lift.
Step 5: Protect the Connection From Rust
Bare steel rusts, and rust adds resistance. Crutchfield notes that many installers coat the finished connection with silicone caulk to prevent corrosion (Crutchfield, 2026). Apply it over the tightened terminal and the exposed metal around it, not between the terminal and the body.
Check the connection again after a few weeks of driving, because bolts can settle.
Step 6: Test the Ground With a Multimeter
Test the ground before you rely on it. There are two checks: resistance with the system off, and voltage drop with it playing.
For resistance, set the meter to ohms and measure between the amplifier’s ground terminal and the battery’s negative terminal. Sonic Electronix says zero ohms is ideal but rarely achieved, and that half an ohm or less is an excellent connection (Sonic Electronix, 2026).
The voltage drop test is more revealing, because it measures the ground while current is flowing. Fluke explains that voltage drop varies with current, so the circuit must be operating (Fluke, 2026). Play music at a healthy volume, set the meter to DC volts, and put one probe on the amplifier’s ground terminal and the other on the battery’s negative post.
| Test | Good result |
|---|---|
| Resistance, ground terminal to battery negative | 0.5 ohm or less (Sonic Electronix, 2026) |
| Voltage drop at a ground, under load | 0.10 volt or less (Fluke, 2026) |
| Voltage drop across a wire or cable | 0.20 volt or less (Fluke, 2026) |
Our guide on how to test a car amplifier with a multimeter covers the power and remote terminals as well.
Signs of a Bad Amplifier Ground
A bad ground shows up as noise, protection or low voltage. BestCarAudio explains that a weak ground leads to a ground loop, which produces noise and degrades sound quality (BestCarAudio, 2025). Rockford Fosgate notes that a poorly connected ground wire can trigger an amplifier’s protection circuit (Rockford Fosgate, 2022).
Kicker’s manual gives a third sign: a red LED that flickers with loud music means low battery voltage, and all the connections should be checked (Kicker, 2019). If the amplifier has already failed, see our guide on how to fix a blown car amplifier.
Can You Ground an Amplifier to the Battery?
Yes. BestCarAudio calls the idea that you cannot ground an amplifier to the battery a myth, and recommends a parallel ground in cars with a poor chassis path: a cable the same size as the power cable, run to the battery’s negative terminal alongside the chassis connection (BestCarAudio, 2021).
The reason is how modern cars are built. A JL Audio engineering test cited by BestCarAudio found that most vehicle chassis had resistance equal to 4 AWG cable, but newer vehicles are worse because of non-conductive structural adhesives. The 2019 Acura RDX uses more than 121 feet of adhesive (BestCarAudio, 2021). The full argument is in BestCarAudio’s article on grounding an amplifier to the battery.
Grounding More Than One Amplifier and the Big 3
For two or more amplifiers, treat the grounds like the power wiring. Crutchfield says to run from a ground distribution block to each amplifier (Crutchfield, 2026). Alpine’s advice is to ground all audio components to the same chassis point to prevent ground loops (Alpine, 2026).
The car’s own ground can be the weak link. JL Audio notes that many vehicles use 10 to 6 AWG wire for the battery ground, and recommends upgrading it to 4 AWG when the main fuse rating is above 60 amps (JL Audio, 2019). Kicker recommends adding a ground wire of the same gauge or larger between the battery’s negative post and the chassis (Kicker, 2019).
That is one part of the Big 3 upgrade. Crutchfield describes it as adding 1/0 or 4 gauge wire on three runs: alternator to battery positive, battery negative to chassis, and chassis to engine block (Crutchfield, 2026).
Frequently Asked Questions About Grounding a Car Amplifier
How long should an amplifier ground wire be?
As short as possible. Crutchfield says 18 inches at most, Kicker 24 inches, Rockford Fosgate less than 30 inches and JL Audio 36 inches. Follow the figure in your amplifier’s manual.
Does the ground wire need to be the same gauge as the power wire?
Yes, at least the same size. The ground carries the same current as the power wire, and BestCarAudio notes that a larger ground wire is fine (BestCarAudio, 2025).
Can I ground my amplifier to a seat bolt?
It is not recommended. Rockford Fosgate says seat belt bolts should never be used and advises avoiding seat bolts (Rockford Fosgate, 2022). Use a factory ground point or bare metal welded to the body.
Do I need to sand the paint off for a ground?
Yes. Paint does not conduct, so the ring terminal must touch bare metal. Crutchfield describes the goal as bare metal to bare metal contact (Crutchfield, 2026).
How do I know if my amplifier ground is bad?
Measure it. More than about half an ohm to the battery’s negative terminal, or more than 0.10 volt of drop while music plays, points to a weak ground. Noise and an amplifier that goes into protection are common symptoms.
Can two amplifiers share one ground?
Yes. Use a ground distribution block with a wire to each amplifier (Crutchfield, 2026), or bring the grounds to one common chassis point (Alpine, 2026).
What is the Big 3 upgrade?
It is three heavier cables under the hood: alternator to battery positive, battery negative to chassis, and chassis to engine block, in 1/0 or 4 gauge wire (Crutchfield, 2026).
Summary: How to Ground an Amplifier in Car Audio Installs
- Use ground wire as thick as the power wire and keep it as short as the manual allows.
- Bolt it to bare, sanded metal that is welded to the body or chassis, never to a seat belt bolt.
- Use a ring terminal and a star washer, then seal the joint against rust.
- Confirm it with a multimeter: 0.5 ohm or less, and 0.10 volt or less under load.
