How to Measure Sub Size: Diameter, Cutout, Depth and Box Volume

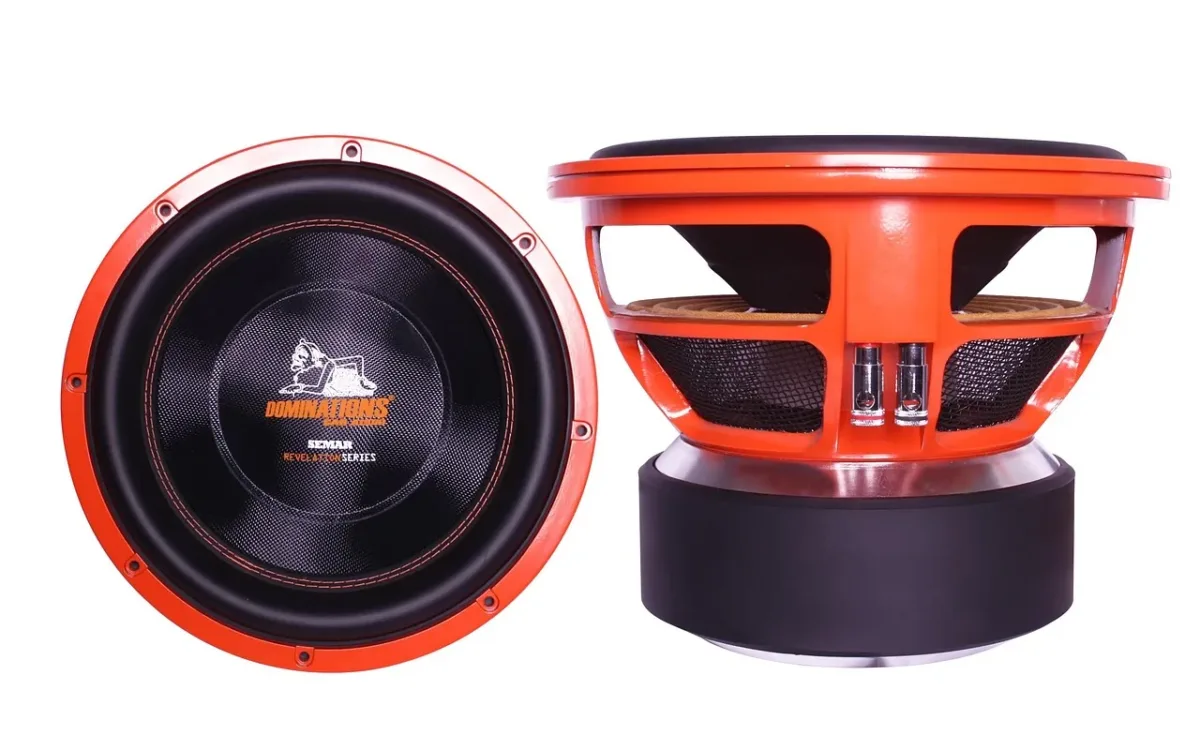

To measure sub size, lay a tape measure across the front of the subwoofer from the outer edge of the frame to the opposite outer edge, passing through the center of the dust cap. That number, rounded to the nearest standard size (8, 10, 12, 15 or 18 inches), is the size the industry uses. If you plan to replace the driver or build a new box, you also need the cutout, mounting depth and screw pattern, and this guide shows how to take each one.

What “Subwoofer Size” Actually Measures

Subwoofer size is the nominal outside diameter of the frame (also called the basket), not the diameter of the cone. Manufacturers round it to a standard number, so a driver sold as 12 inches can measure a little over 12 inches across the frame and well under 12 inches across the moving cone.

Here is how the published dimensions of two real 12-inch and 10-inch drivers compare with their labels:

Source: JL Audio parameters published by Loudspeaker Database (2026). Effective cone diameter is calculated from each driver’s Sd (effective cone area) of 345 and 520 square centimeters.

What You Need to Measure a Subwoofer

You need a tape measure, a straight edge longer than the subwoofer (a steel ruler or a flat piece of wood), a second ruler for depth, and a notepad. A set of digital calipers helps for the bolt circle but is optional.

• A tape measure with a stiff blade for diameter and box measurements.
• A straight edge at least 16 inches long to lay across the frame for depth readings.
• A small ruler or the depth rod on a set of calipers.
• A screwdriver or an Allen wrench if the subwoofer has to come out of its box.

If the subwoofer is still in an enclosure, you can measure the overall diameter and mounting height in place, but mounting depth and cutout are far more accurate with the driver removed.

Step 1: Measure the Overall Diameter

Measure straight across the front of the subwoofer from the outer edge of the frame to the outer edge on the opposite side, passing through the center of the dust cap. Round to the nearest standard size to get the nominal size: 8, 10, 12, 15 or 18 inches.

The overall diameter is usually equal to the nominal size or up to about half an inch larger. Kicker lists its CompC 10 at exactly 10 inches overall, while the JL 12W3v3 measures 12.5 inches across (Kicker, 2026; Loudspeaker Database, 2026). If your reading falls between sizes, such as 13 inches, check for an oversized trim ring or gasket, or a less common 13.5-inch driver.

Step 2: Measure the Cutout Diameter

The cutout diameter is the size of the hole the subwoofer drops into. Measure it on the enclosure baffle, edge to edge through the center, after removing the driver. If the box is gone, measure the outside of the basket just below the mounting flange instead.

Cutout matters more than overall diameter when replacing a driver. Kicker’s CompC 12 specifications list an 11-inch cutout, and its CompC 10 needs 9 1/8 inches (Kicker, 2026). If a new driver’s cutout is smaller than your hole, it will fall through; if it is larger, you will need to enlarge the hole with a jigsaw or router.

A new cutout can be cut larger, but it cannot be made smaller without adding a new baffle ring or a mounting adapter. Write the number down to the nearest 1/16 inch.

Step 3: Measure the Mounting Depth

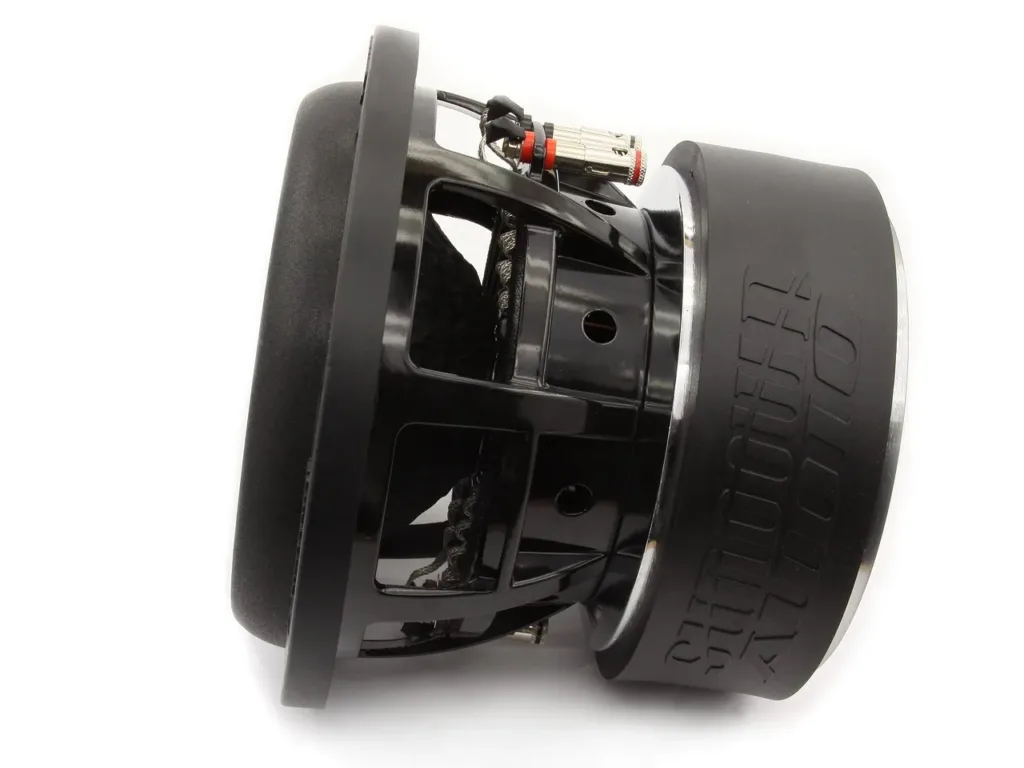

Mounting depth is the distance from the back of the mounting flange (the surface that sits on the baffle) to the rearmost point of the magnet or motor. Lay the subwoofer face down, place a straight edge across the back of the flange, and measure from it to the highest point of the magnet.

This is the number that decides whether a driver fits a shallow box or a tight spot behind a truck seat. Published depths vary widely even within one size: the Kicker CompC 12 needs 5 3/8 inches, while the JL 12W3v3 needs 6.65 inches (Kicker, 2026; Loudspeaker Database, 2026).

Add at least half an inch of clearance behind the magnet for the pole vent and for cone travel. A driver that touches the back wall of its box will lose output and can overheat, because the vent in the pole piece needs space to move air.

Step 4: Measure the Mounting Height and Bolt Pattern

Mounting height is how far the subwoofer sticks out above the baffle once installed, including the surround at rest. Measure it from the front face of the flange to the highest point of the surround or dust cap. It matters for grilles, floor-mounted boxes and anything that sits in front of the driver.

For the bolt pattern, count the mounting holes and measure the bolt circle (center of one hole to the center of the directly opposite hole). Many 12-inch drivers use 8 holes, but spacing differs between brands, so plan on drilling new pilot holes when you switch brands.

How to Measure the Cone to Work Out Real Cone Area

To measure effective cone size, measure from the middle of the rubber or foam surround on one side to the middle of the surround on the opposite side. Halve it to get the radius, then multiply the radius squared by 3.14 to get the effective cone area, known as Sd.

An 8.25-inch measurement on a 10-inch driver, for example, gives a radius of 4.125 inches and an Sd of about 53 square inches (345 square centimeters). Manufacturers usually publish Sd, so check the spec sheet first, but this measurement is useful for unmarked or older drivers.

Sd is a better guide to output than the size on the label. More cone area moves more air for the same excursion, which is why the jump from a 10 to a 12 gives about 51% more cone area in the JL examples above.

How to Measure Your Subwoofer Box Volume

Measure the inside of the box, not the outside. Take the internal length, width and height in inches, multiply them, and divide by 1,728 to get cubic feet. If you can only reach the outside, subtract twice the wall thickness from each dimension first.

A sealed box that measures 24 x 14 x 14 inches outside, built from 3/4-inch MDF, has internal dimensions of 22.5 x 12.5 x 12.5 inches. That is 3,515.6 cubic inches, or 2.03 cubic feet gross.

From that gross figure, subtract the driver’s displacement (usually listed on the spec sheet, often around 0.1 cubic feet for a 12), any internal bracing and, on a ported box, the port itself. The result is the net volume, which is the number to compare against the manufacturer’s recommended range.

How to Measure Your Car for a New Subwoofer

Measure the space where the box will go at its narrowest points: width between the wheel wells, depth from the seat back to the trunk lip, and height to the underside of the parcel shelf or trunk lid. Then check the opening the box has to pass through.

That last step catches a lot of people out. A box that fits the trunk floor may not clear the trunk lid opening, and a box for behind a pickup seat must pass through the door. Compare your space against the recommended box volumes in our guide on how to choose a subwoofer for your car.

Common Mistakes When Measuring Subwoofer Size

The most common mistake is measuring the cone and calling it the subwoofer size. The nominal size refers to the frame, so a cone measurement will make a 12-inch driver look like a 10.

• Measuring the cone instead of the frame, which understates the nominal size by roughly 2 inches.
• Measuring mounting depth from the front of the driver instead of from the back of the flange.
• Forgetting the gasket or trim ring, which can add a quarter inch to the overall diameter.
• Measuring box volume from the outside and forgetting to subtract wall thickness.
• Ignoring driver displacement and port volume, which leaves a box smaller than it looks.
• Assuming every 12-inch driver shares the same cutout. Check the new driver’s spec sheet before cutting.

If your subwoofer is making odd noises while you have it out, it is worth a quick inspection. Our guide on how to fix a subwoofer in your car covers surround tears, voice coil tests and wiring faults.

Frequently Asked Questions About Measuring Subwoofer Size

Summary: How to Measure Sub Size Correctly

• Measure the frame edge to edge through the center and round to the nearest standard size.
• Record the cutout, mounting depth, mounting height and bolt circle before buying a replacement.
• Use the surround-to-surround cone measurement to estimate real cone area (Sd).
• Measure box volume on the inside and subtract displacement to get net cubic feet.
